LBO

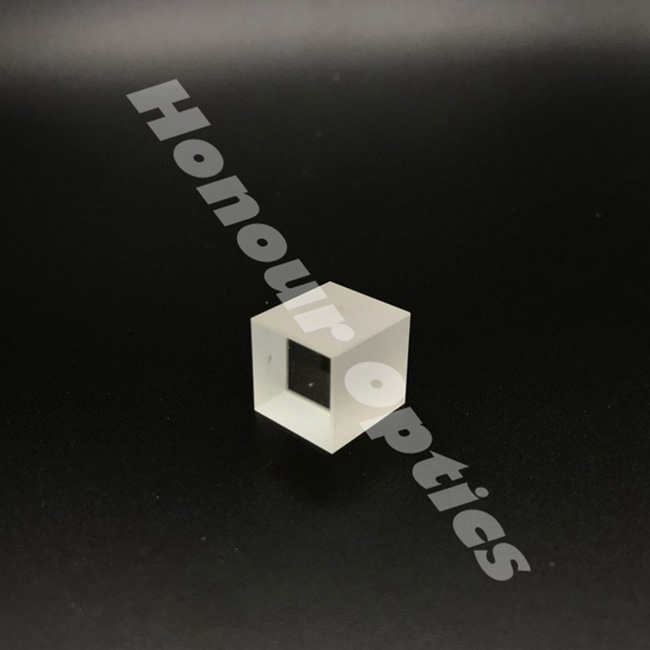

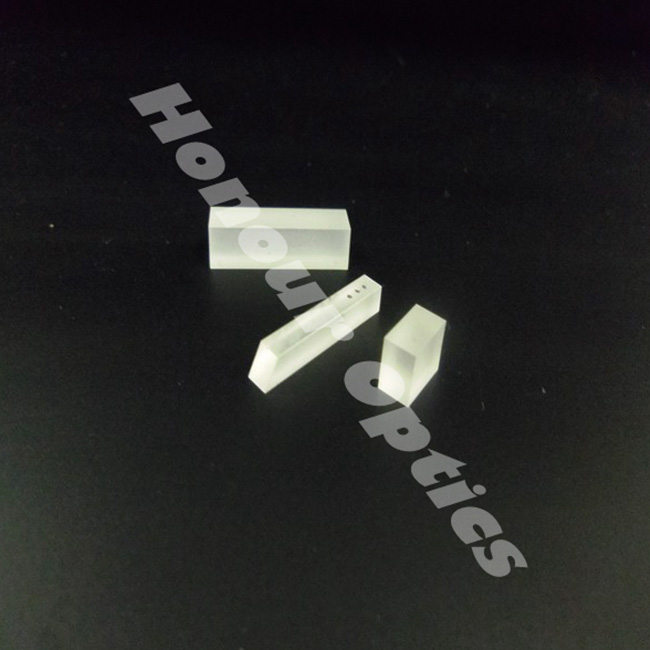

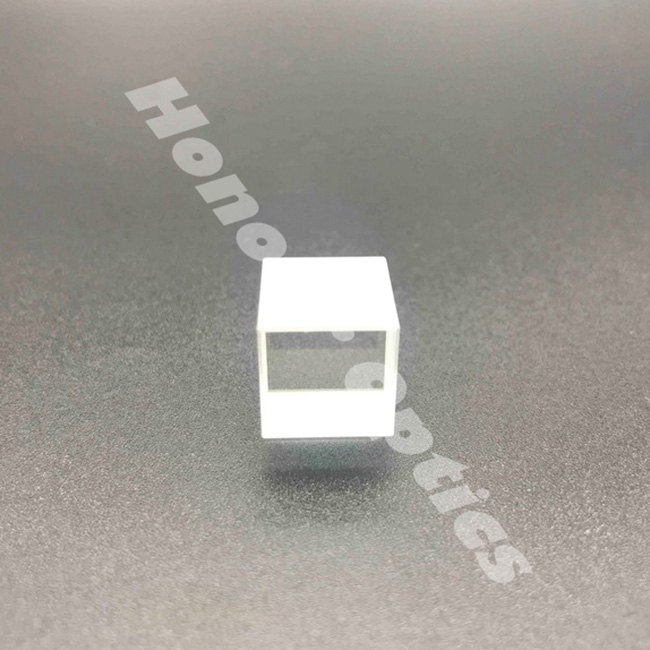

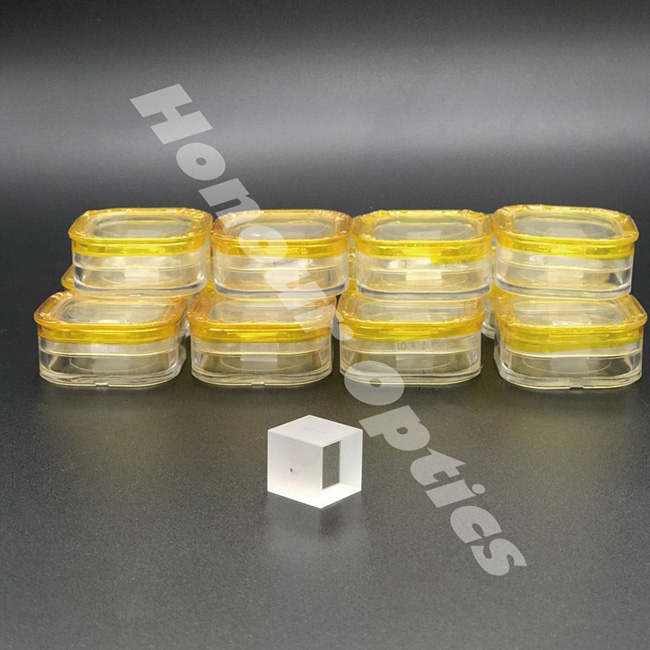

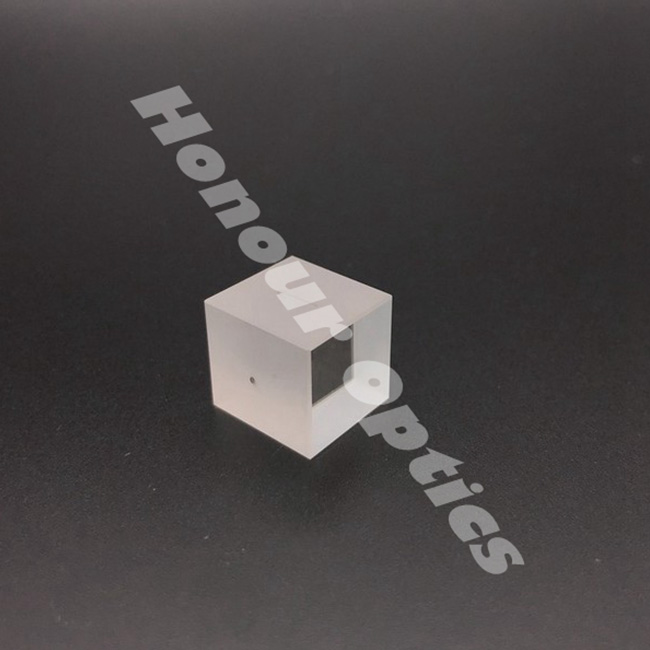

Lithium Triborate (LBO) is unique in many aspects, especially its wide transparency range, moderately high nonlinear coupling, high damage threshold and good chemical and mechanical properties. LBO allows temperature-controllable non -critical phase-matching (NCPM) for 1.0-1.3 μm, Type I SHG, and also provides room temperature NCPM for Type II SHG at 0.8-1.1 μm. It possesses a relatively large angular acceptance bandwidth, reducing the beam quality requirements for source lasers.

Specifications:

* Dimension tolerance: (W±0.1mm)x(H±0.1mm)x(L+0.5/-0.1mm) (L≥2.5mm)
                                      (W±0.1mm)x(H±0.1mm)x(L+0.1/-0.1mm) (L<2.5mm)
* Clear aperture: central 90% of the diameter
* No visible scattering paths or centers when inspected by a 50mW green laser
* Flatness: less than λ/8 @ 633nm
* Transmitting wavefront distortion: less than λ/8 @ 633nm
* Chamfer: ≤0.2mmx45°
* Chip: ≤0.1mm
* Scratch/Dig code: better than 10/ 5 to MIL-PRF-13830B
* Parallelism: better than 20 arc seconds
* Perpendicularity: ≤5 arc minutes
* Angle tolerance: Δθ≤0.25°, ΔΦ≤0.25°
* Damage threshold[GW/cm2 ]: >10 for 1064nm, TEM00, 10ns, 10HZ (polished only)
                                                     >1 for 1064nm, TEM00, 10ns, 10HZ (AR-coated)
                                                     >0.5 for 532nm, TEM00, 10ns, 10HZ (AR-coated)
* Quality Warranty Period: one year under proper use.

Table 1. Chemical and Structural properties of LBO

Crystal Structure	Orthorhombic, Space group Pna21, Point group mm2
Lattice Parameter	a=8.4473Å, b=7.3788Å , c=5.1395Å , Z=2
Melting Point	About 834℃
Mohs Hardness	6
Density	2.47 g/cm3
Thermal Conductivity	3.5W/m/K
Thermal Expansion Coefficient	ax=10.8x10-5/K, ay= -8.8x10-5/K, az=3.4x10-5/K

Table 2. Optical and Nonlinear Optical Properties of LBO

Transparency Range	160-2600nm
SHG Phase Matchable Range	551 ~ 2600nm (Type I) 790-2150nm (Type II)
Therm-optic Coefficient (°C, λ in μm)	dnx/dT=-9.3X10-6 dny/dT=-13.6X10-6 dnz/dT=(-6.3-2.1λ)X10-6
Absorption Coefficient	<0.1%/cm at 1064nm <0.3%/cm at 532nm
Angle Acceptance	6.54mrad-cm (φ, Type I,1064 SHG) 15.27mrad-cm (q, Type II,1064 SHG)
Temperature Acceptance	4.7°C-cm (Type I, 1064 SHG) 7.5°C-cm (Type II,1064 SHG)
Spectral Acceptance	1.0nm-cm (Type I, 1064 SHG) 1.3nm-cm (Type II,1064 SHG)
Walk-off Angle	0.60° (Type I 1064 SHG) 0.12° (Type II 1064 SHG)
NLO Coefficients	deff(I)=d32cosΦ (Type I in XY plane) deff(I)=d31cos2θ+d32sin2θ (Type I in XZ plane) deff(II)=d31cosθ (Type II in YZ plane) deff(II)=d31cos2θ+d32sin2θ (Type II in XZ plane)
Non-vanished NLO susceptibilities	d31=1.05 ± 0.09 pm/V d32= -0.98 ± 0.09 pm/V d33=0.05 ± 0.006 pm/V
Sellmeier Equations(λ in μm)	nx2=2.454140+0.011249/(λ2-0.011350)-0.014591λ2-6.60x10-5λ4 ny2=2.539070+0.012711/(λ2-0.012523)-0.018540λ2+2.0x10-4λ4 nz2=2.586179+0.013099/(λ2-0.011893)-0.017968λ2-2.26x10-4λ4
