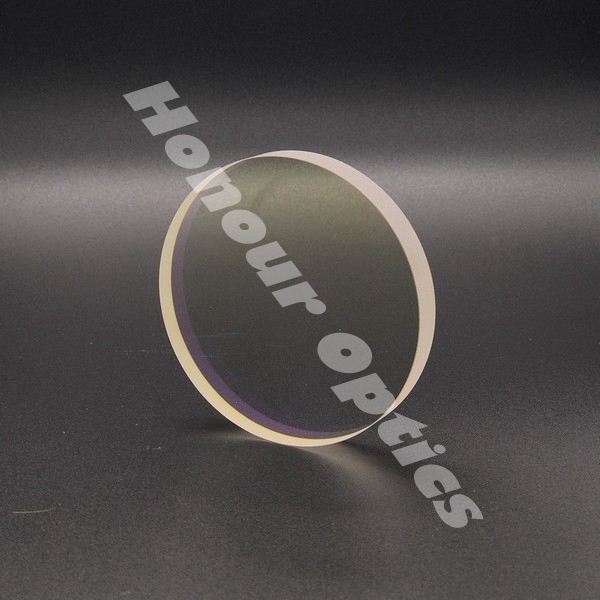

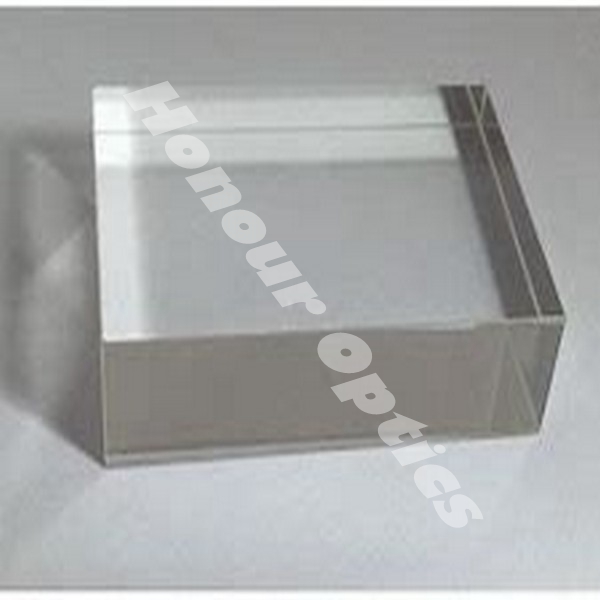

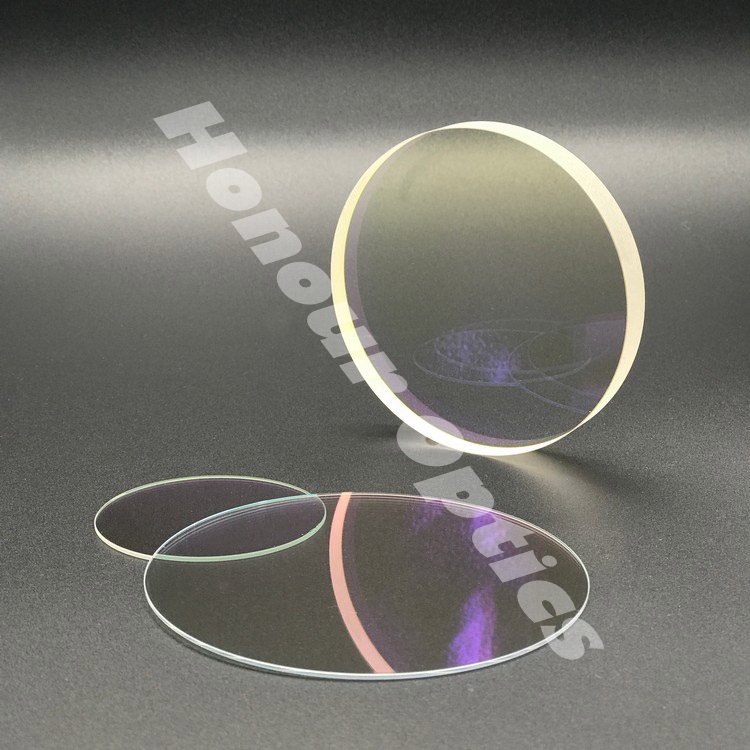

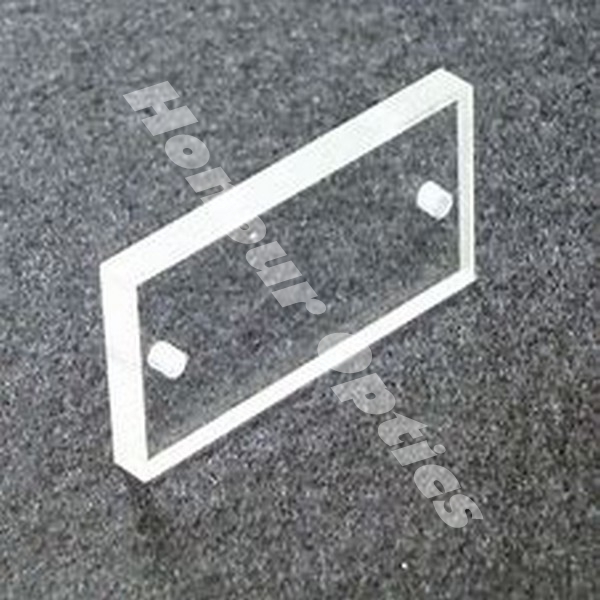

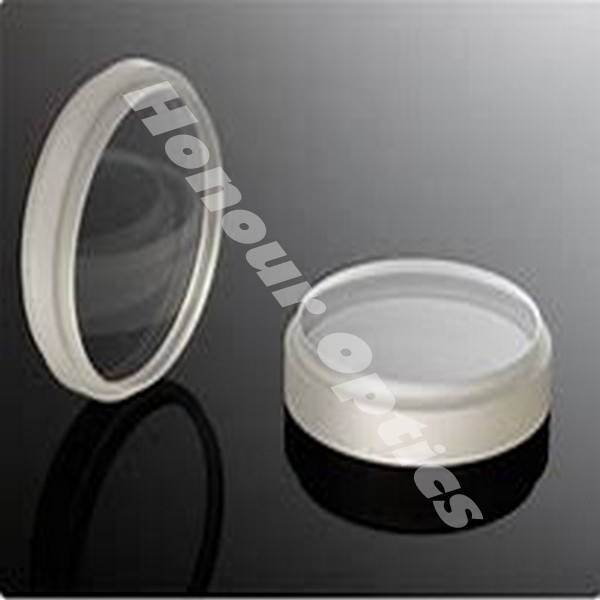

Window
Windows are applied to isolate different physical environments while allowing light pass. When selecting windows we should consider materials, transmission, scattering, wavefront distortion, parallelism and resistance to certain environment. Honour Optics offers a wide range of different materials including MgF2, CaF2, Sapphire and all other materials with different sizes available upon request.
Specifications | |
Material | All optical material |
Parallelism | 10″or 1′ |
Diameter Tolerance | +0.0/-0.1mm |
Surface Quality | 20-10 scratch and dig |
Thickness Tolerance | ±0.1mm |
Wavefront Distortion | λ/10 per 25mm |
Clear Aperture | >95% |
Bevel | <0.5mm×45° |
